modular HMI concept

01

Custom-made operating units for your needs

Modular HMI Concept

The MOBA HMImc (mc = modular concept) provides you the unique opportunity to easily and quickly create  your individual operating unit. Simply combine your required components out of a range of keypad, display, and joystick modules. Design your individual HMI according to your needs and requirements true to the slogan: "Flexibility through modularity".

Performance

Download BrochureContact us

AERIAL LIFT TRUCK

INNOVATION EXTENDS DURABILITY

Once you have chosen the modules for your individual HMI you can freely design them according to your needs. A specially developed ergonometric film optimally protects the keys of your keypad and display module and the basis of your joystick module. You are free to design the color of all films as well as the shape of your chosen keys. The unique modular concept facilitates an easy extension of the HMI and a quick and cost-efficient replacement of individual parts. Once you need more or different features you can simply update or even upgrade your HMI. This saves you considerable time compared to a replacement of the whole unit.

3er HMI Panel

Triple unit with two joysticks and one keypad module with 16 keys and emergency stop

triple control unit with joysticks and keypad module

Triple unit with two joysticks, one keypad module with 6 keys, emergency stop, and railing

triple operating control unit with railing

Triple unit with one display two joysticks modules, emergency stop and railing

mobile control panel MCP

02

FUTURE-ORIENTED CONCEPT FOR AERIAL WORK PLATFORMS AND MOBILE CRANES

modular Control Panel MCP

Thanks to its modular construction, all components can be exchanged at any time in an uncomplicated manner. In addition to the hardware, the software has also been designed for long-term use. Such time- and cost-efficient upgrades not only increase the longevity of the system, but also significantly contribute to the reduction of maintenance times. Specially developed features make the control panel a true everyday hero among users.

PerformanceSafety

Download BrochureContact us

ONE HOUSING FITS FOR ALL CONTROLLERS

The electrical sub-distribution system integrated in the control panel eliminates the need for a switch cabinet, thus saving on additional weight, space, effort and costs.

MCP mit 2x MPC-130

MCP mit 2x MPC-130 Controllers

MCP mit 2x MPC-113 controllers

MCP mit 2x MPC-113 Controllers

MCP mit 1x MPC-330 Controller

MCP mit 1x MPC-330 Controller

MCP with 2x Controller modules

MCP with 2x Controller modules

aerial work platform with mobile control panel MCP
redundant load cell MRW

03

MORE SAFETY FOR WORK PLATFORMS

MRW Load Limitation

The MRW load cell allows an exact and reliable load limitation on aerial work platform. High accuracy caused by compensating the lever arm effect and a lot of other features are the reason why MOBA is a leader in the area of load limitation. The MRW load cell is the only load-bearing connection between arm and platform.

PerformanceSafety

Download BrochureContact us

SAFETY THROUGH QUALITY!

Each MRW weight cell is tested and is able to compensate the temperature effect on the zero point. Because of this the load cell is able to work properly throughout the whole operating temperature range. Like a blackbox, it stores statistical data like overload alarms, working hours and so on. The complete manufacturing is traceable and all relevant information like testdata of the platine, and the load cell is stored in a data base.

Load cell MRW LIMIT

MRW-LIMIT Load Cell

Redundant load control up to 1,000 kg with optional additional alarm indicator and acoustic signal. Has a simple "one button" operation.

Load cell MRW 1000

MRW-500 and MRW-1000 Load cell

Redundant load control up to 500 kg or 1,000 kg integrated directly into the higher-level machine control.

Load cell MRW XL

MRW-XL Load cell

Redundant load control up to 1,000 kg, specially designed for large aerial work platforms.

mounted redundant load cell MRW at workbasket
inclination sensor MSS

03

maximum outreach in every position of the machine

MSS Inclination sensors

The temperature-compensated and redundant MSS sensors measure the inclination of the chassis and the booms - measurement values that are used for the load moment limitation system. This is a safety relevant system that prevents the vehicle from tipping over. Such a system enables the maximum outreach in every position of the vehicle without threatening the structural safety. Due to its compact and rugged design, the MSS inclination sensor can be optimally mounted and set up on your vehicle. For safety-relevant applications this technology and process should therefore always be your first choice!

PerformanceSafety

Download BrochureContact us

Work basket of an aerial work platform

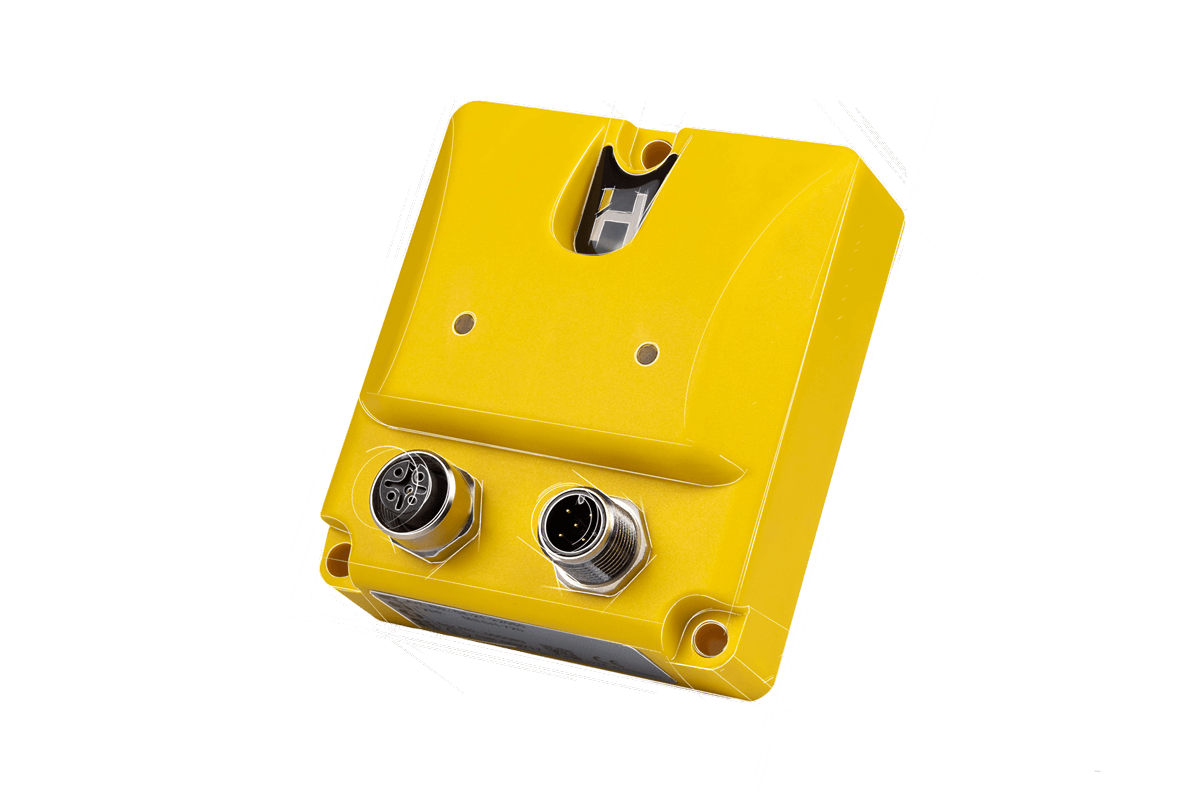

MSS Type 5 & Type 7 Series

The MSS inclination sensors are available in different types, depending on your requirements. There is the Type 5 series, which have different slope measuring ranges, such as from -180° to +180° inclination. They are available with 1-axis or 2-axis measuring range and integrated redundant safety switches. The MSS inclination sensor type 7 series is additionally temperature compensated, which makes the inclination measurement values even more accurate.



RUGGED DESIGN

The slope sensor has been specially developed with special focus to the harsh conditions in which it is used: shock-resistant, weatherproof, with special protection against chemicals and absolutely maintenance-free.

upgradefaehig_white

SMART DESIGN

The compact design of the tilt sensors and the different CAN interfaces are well suited for quick and easy installation on every mobile machine.

REDUNDANT

Fitted with 2 independent channels, the redundant slope sensors supply fast and accurate measured values within a range of ± 15° up to ± 180°, depending on the type.

outrigger distance control DSM

03

Provide safe support during efficient capacity usage

DSM-500

The ultrasonic measurement system measures the extension length of the outriggers, that lie within a measurement range of up to 5 m. Located on the chassis, information is transmitted to the Superordinate Control system. Information on the current span width of each individual outrigger is then made available to the machine. This system enables variable stabilization, ensuring maximum utilization of the work platform, concrete pump or mobile crane.

Performance

Download BrochureContact us

mobile crane with outrigger distance control DSM

Functional concept of the DSM-500 system

The system for precise distance control for supports includes two sensors, a master and a slave. Each of these sensors acts alternately as a transmitter and receiver. This generates two independent measurements. Additional safety measures allow the approval according to DIN EN ISO 13849 PL d. Due to the transmitter-receiver principle, reflections are not covered. Any obstructions have no influence for the result.

outrigger distance control function principle
